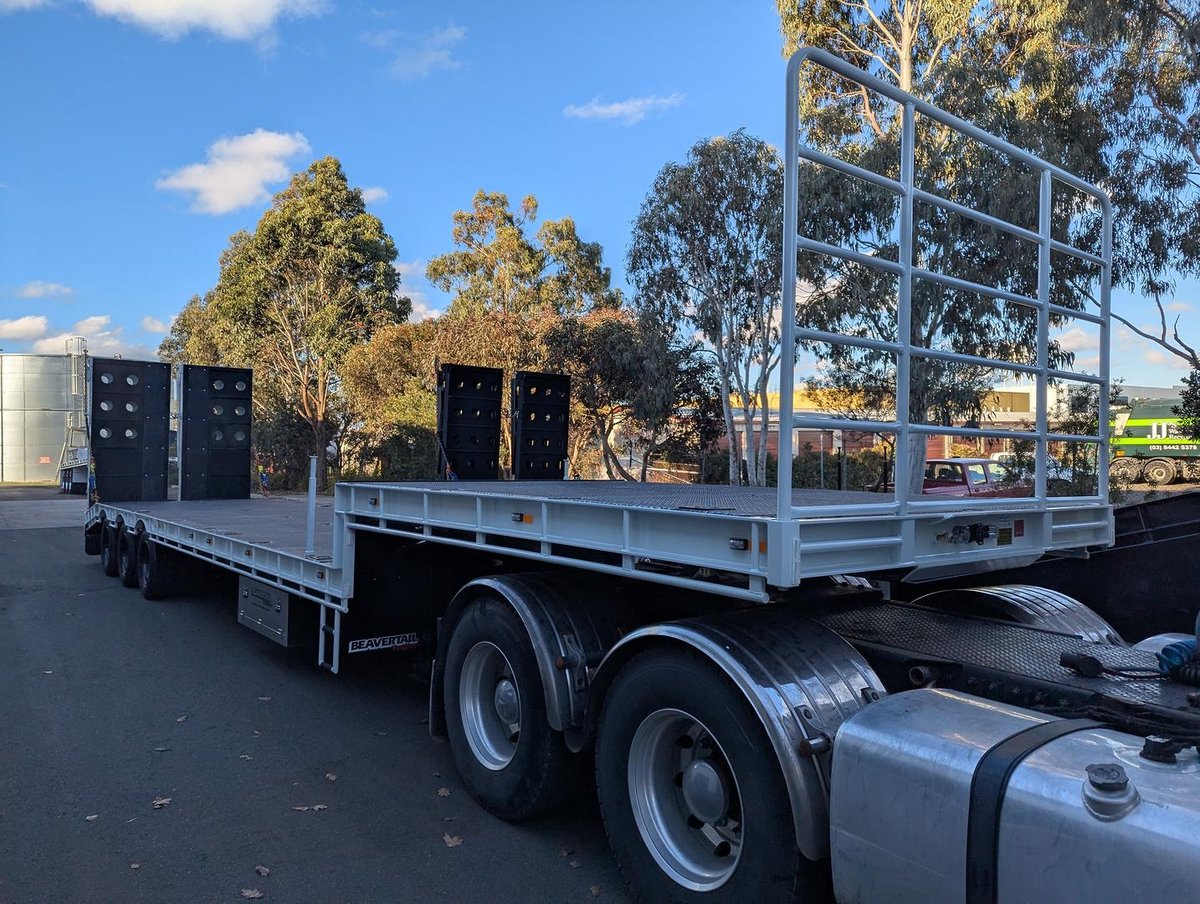

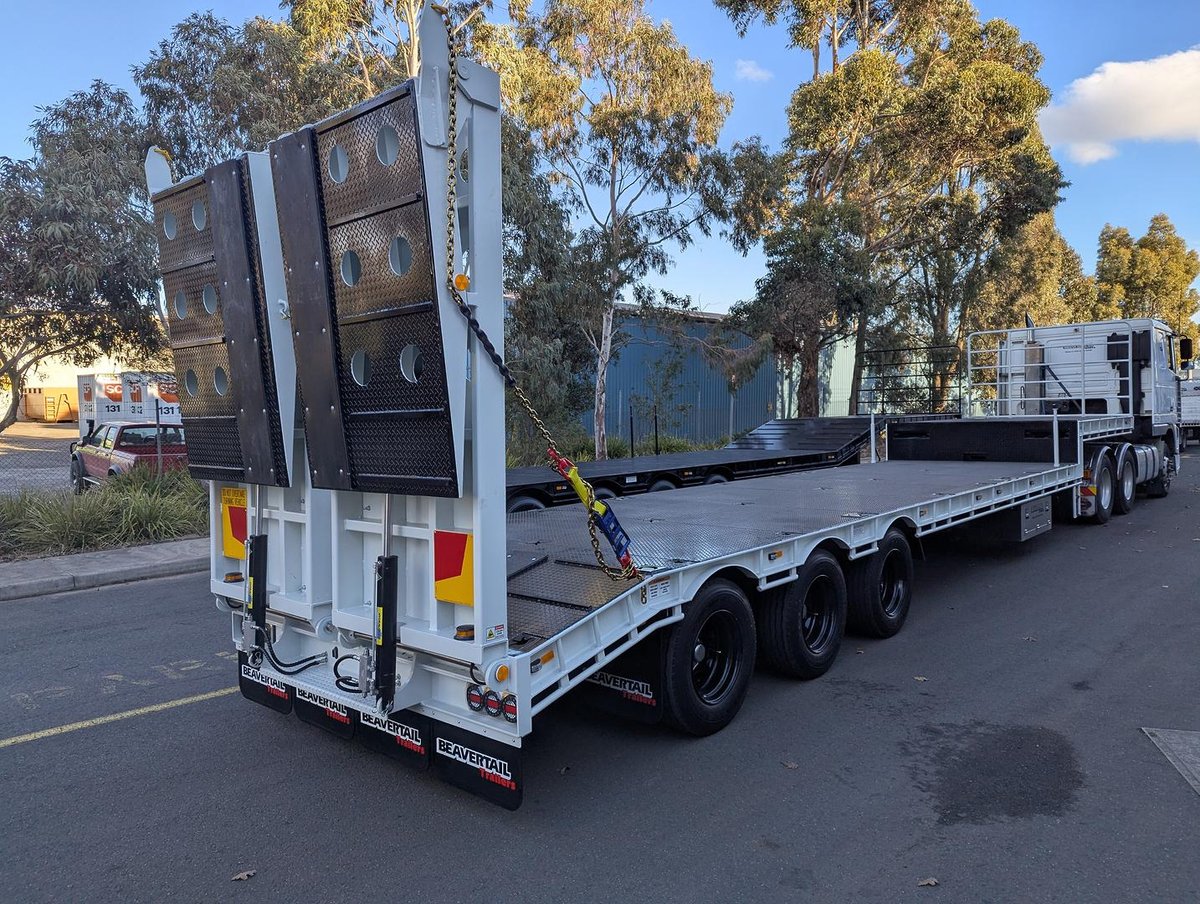

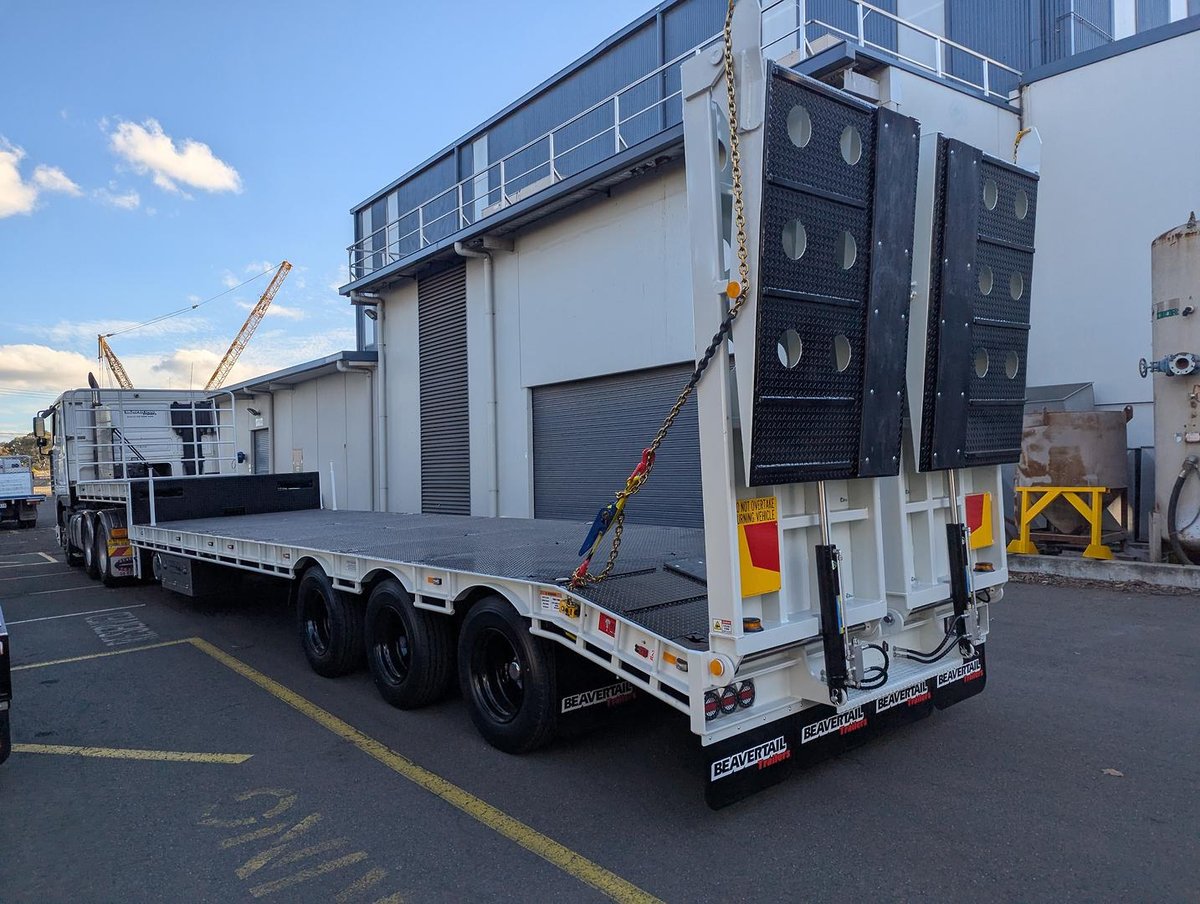

2025 Beavertail Trailers 45 FT Drop Deck 40 Tonne ATM

Brand New 45ft Drop Deck that is available for immediate pick up or delivery that is packed with optional extras.

$133,140 + GST

Included with this trailer is:
Airbag Suspension
Wider Bi-Fold Ramps

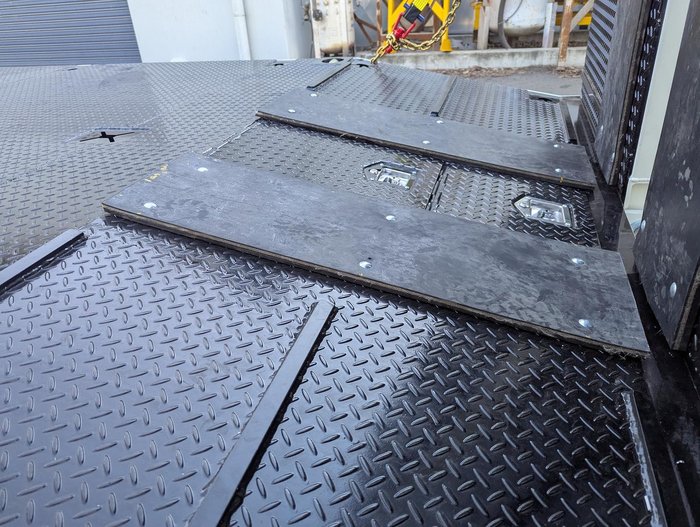

Rubber For Ramps
Polished Water Tank

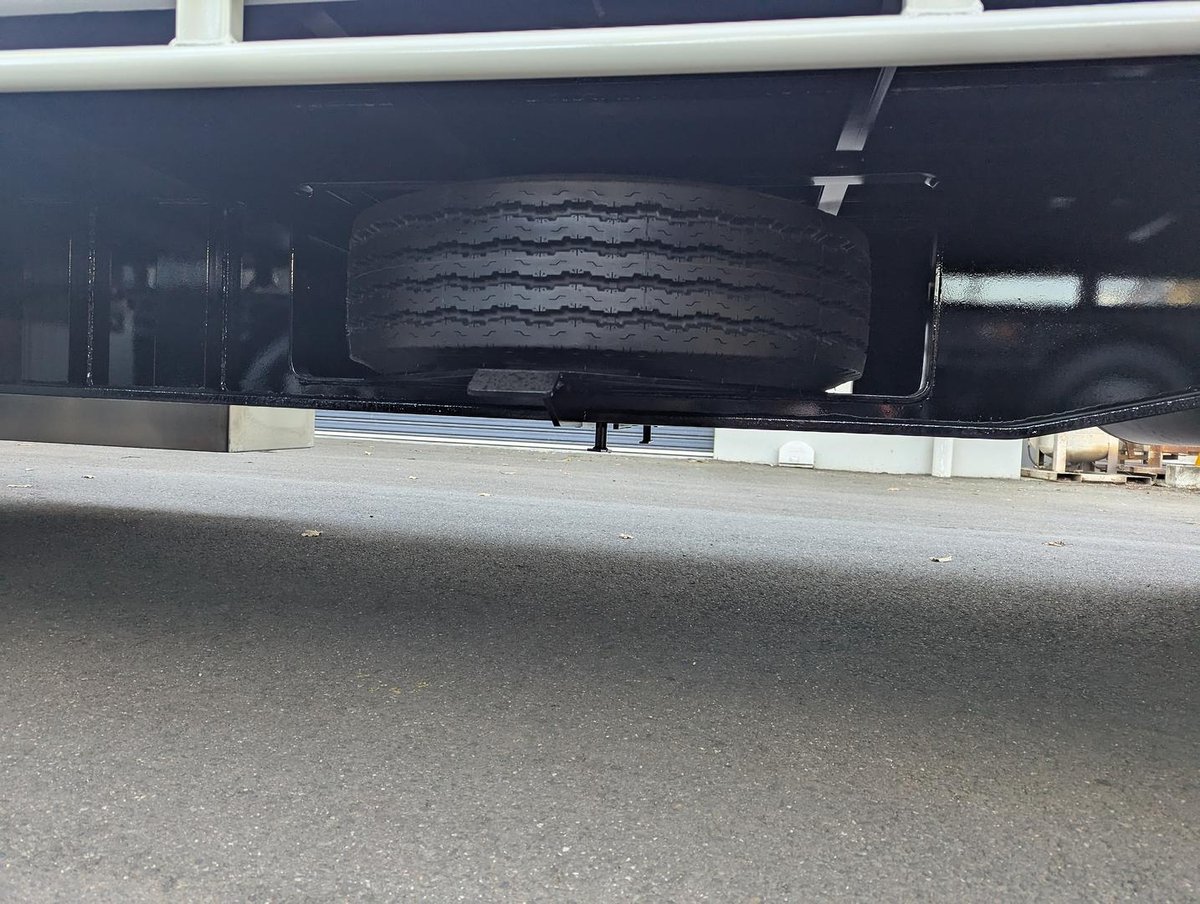

Spare Tyre & Carrier

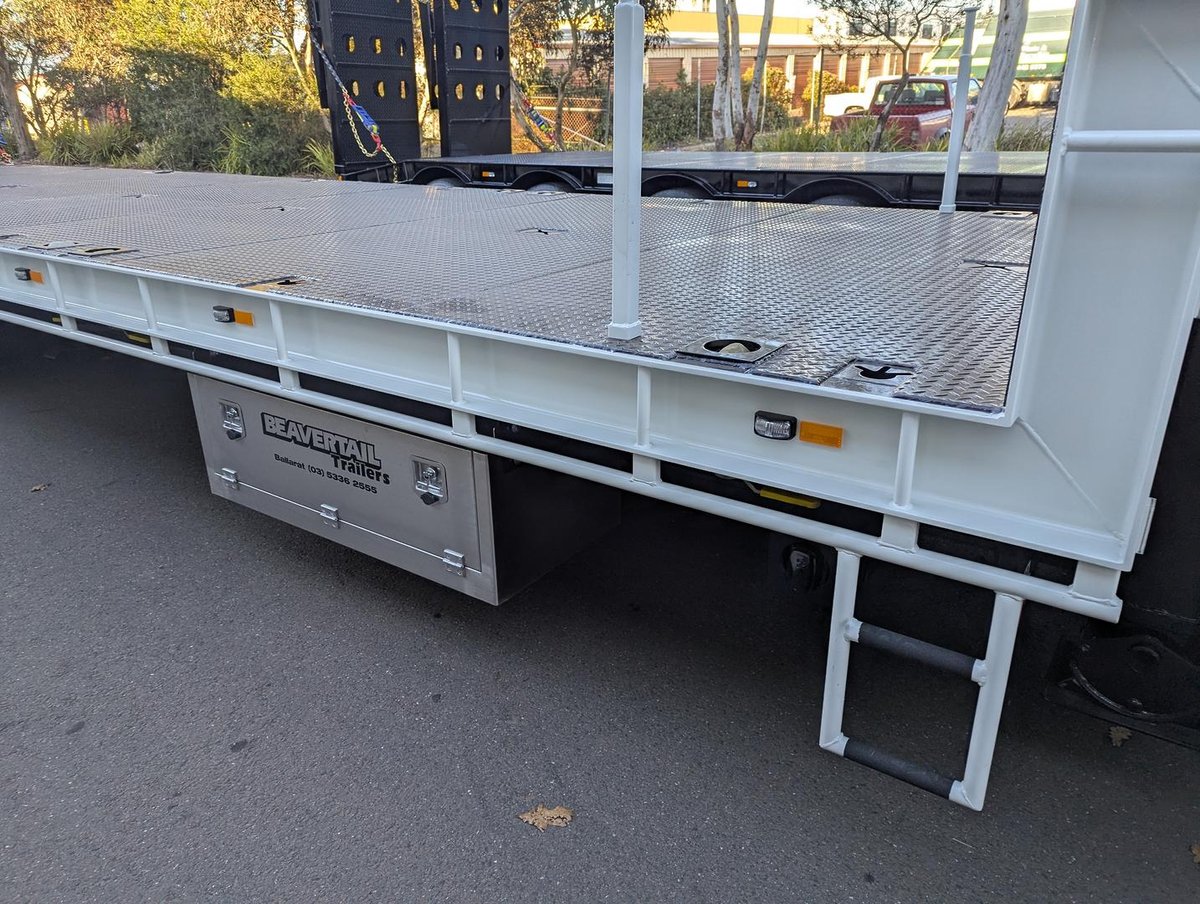

3 Point Side Steps

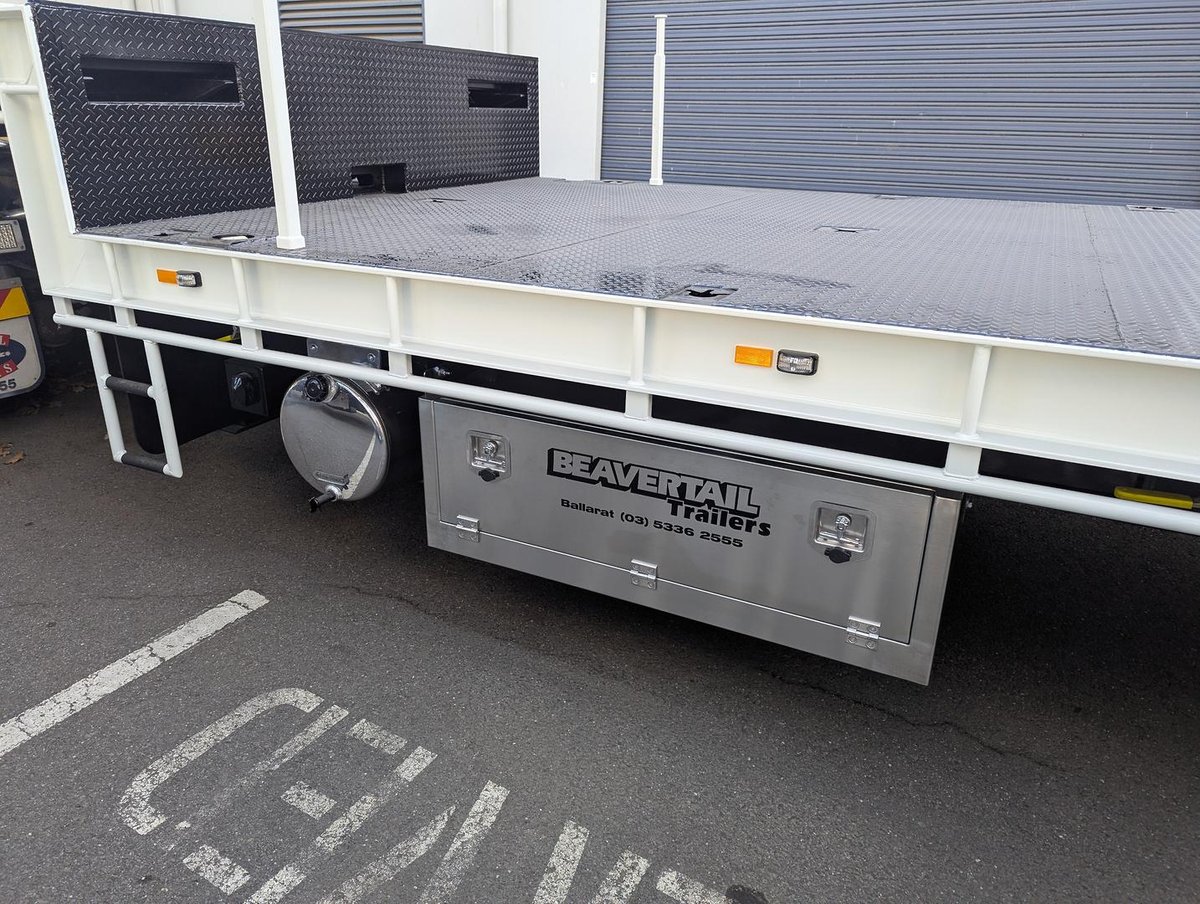

Stainless Steel Toolboxes
Additional In-deck Tie Down Points

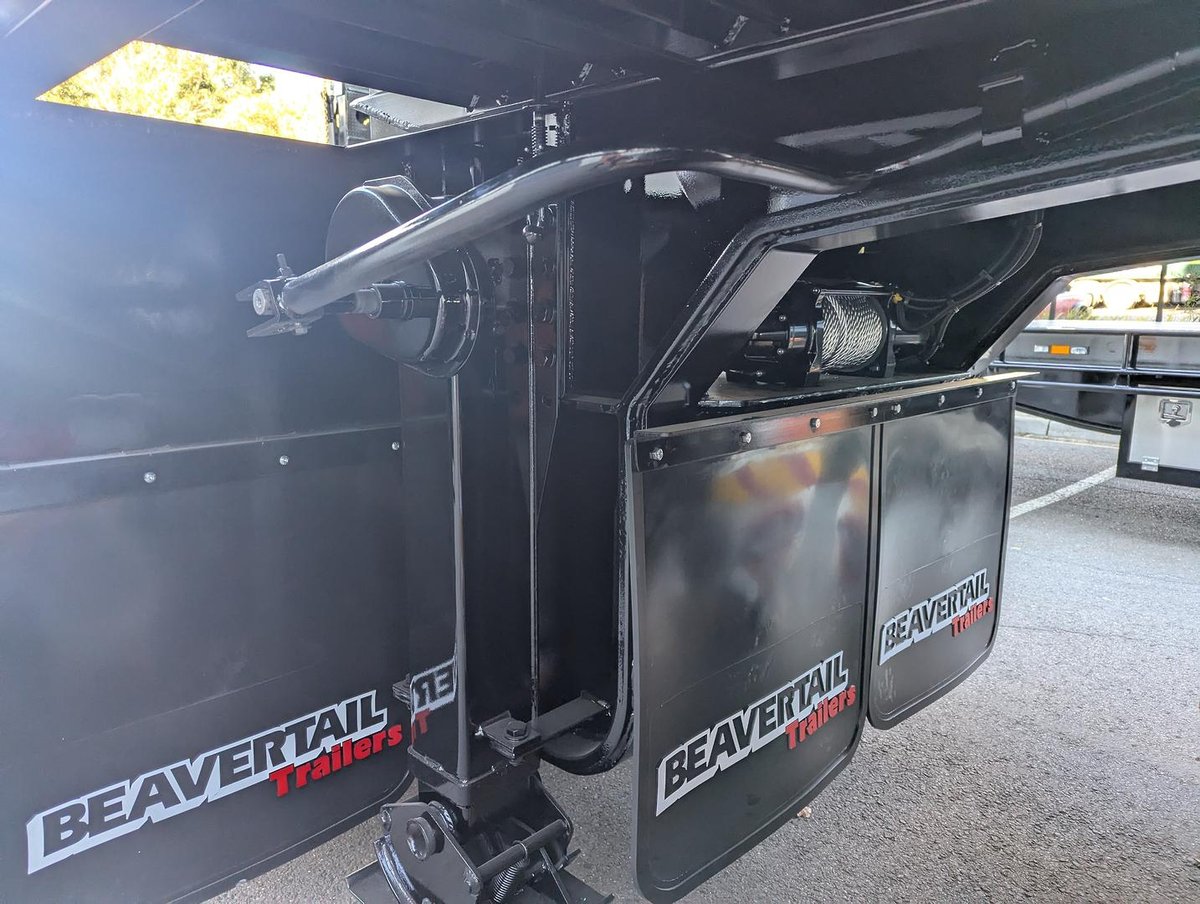

Winch
Rope Rail
5 x Way Container Pins
Painted Steel Rims

ATM: Up to 40 tonnes*.
Dimensions:
• Top Deck: 12 feet (3.63m)
• Bottom deck: 28 feet (8.8m)
• Beavertail: 5 feet (1.5m)
• Drawbar: N/A
Width: 2.5m*.
Chassis & Build:
• Main Chassis: Fabricated beams. 12mm Top & 20mm Bottom Flanges.

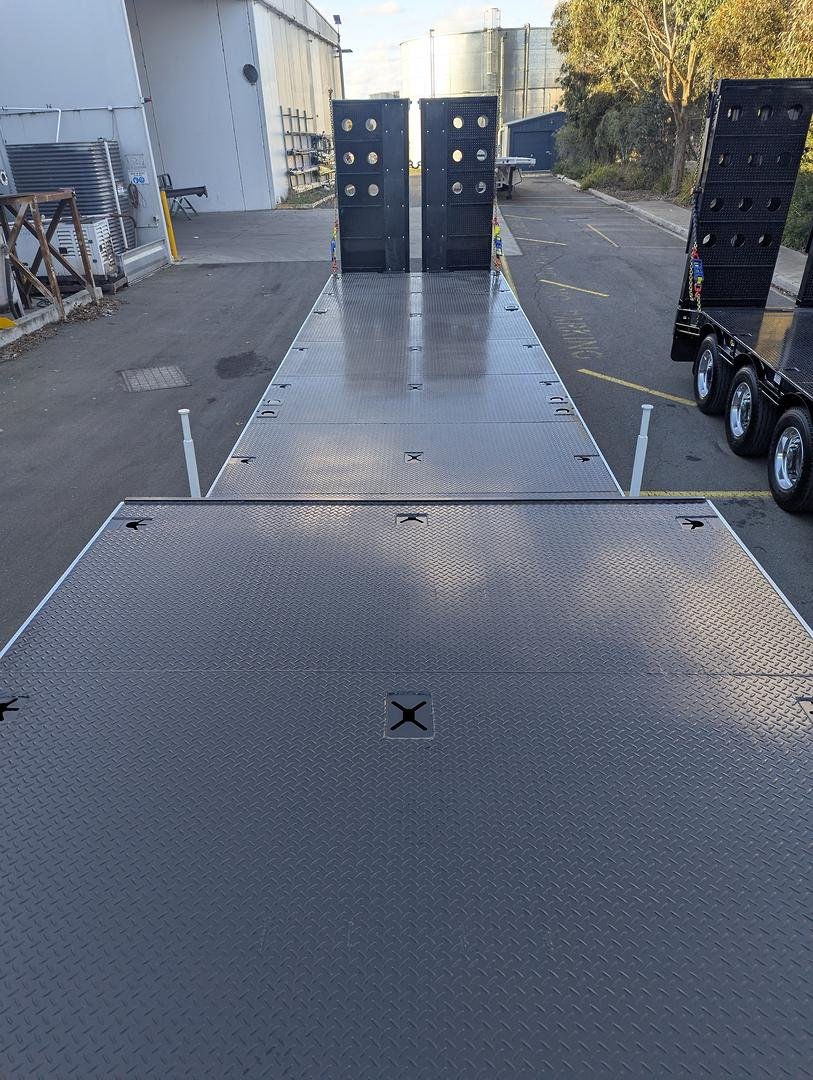

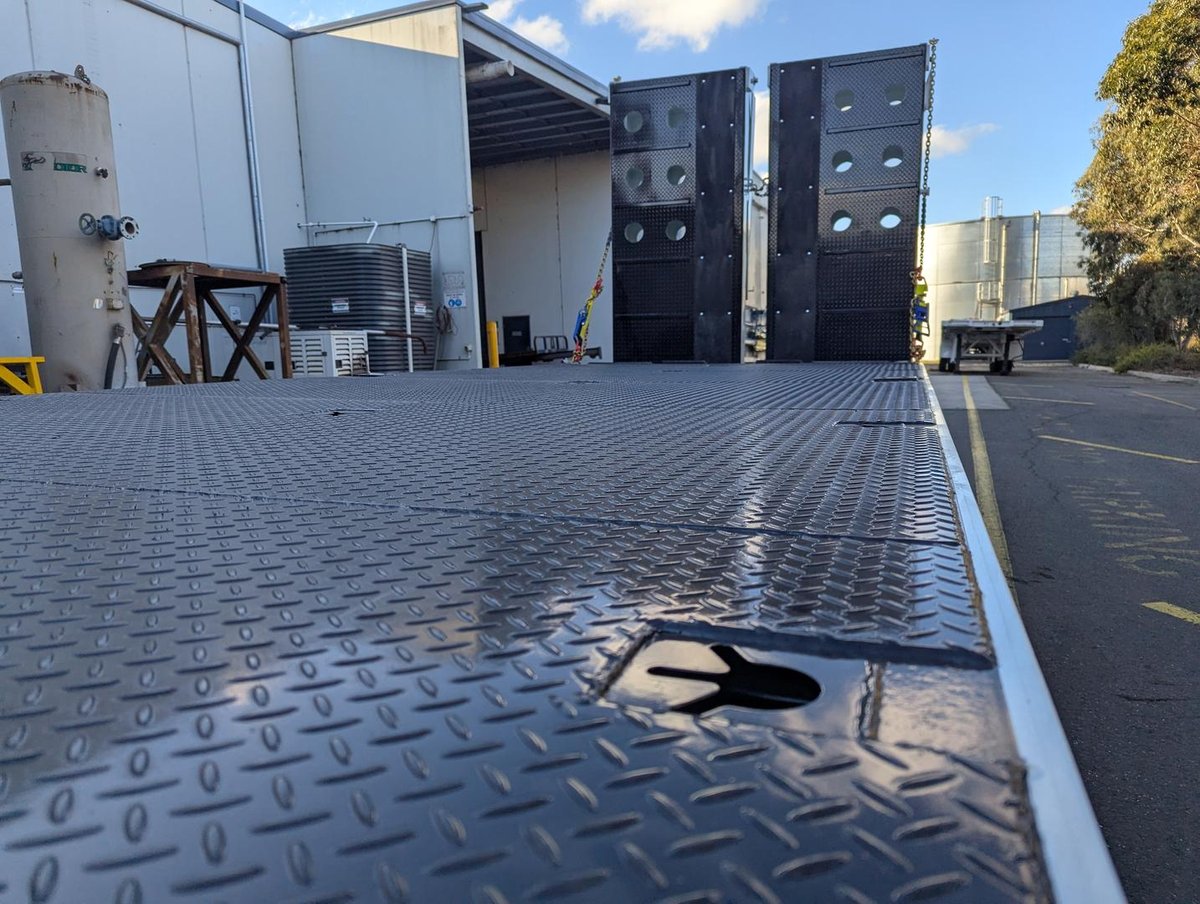

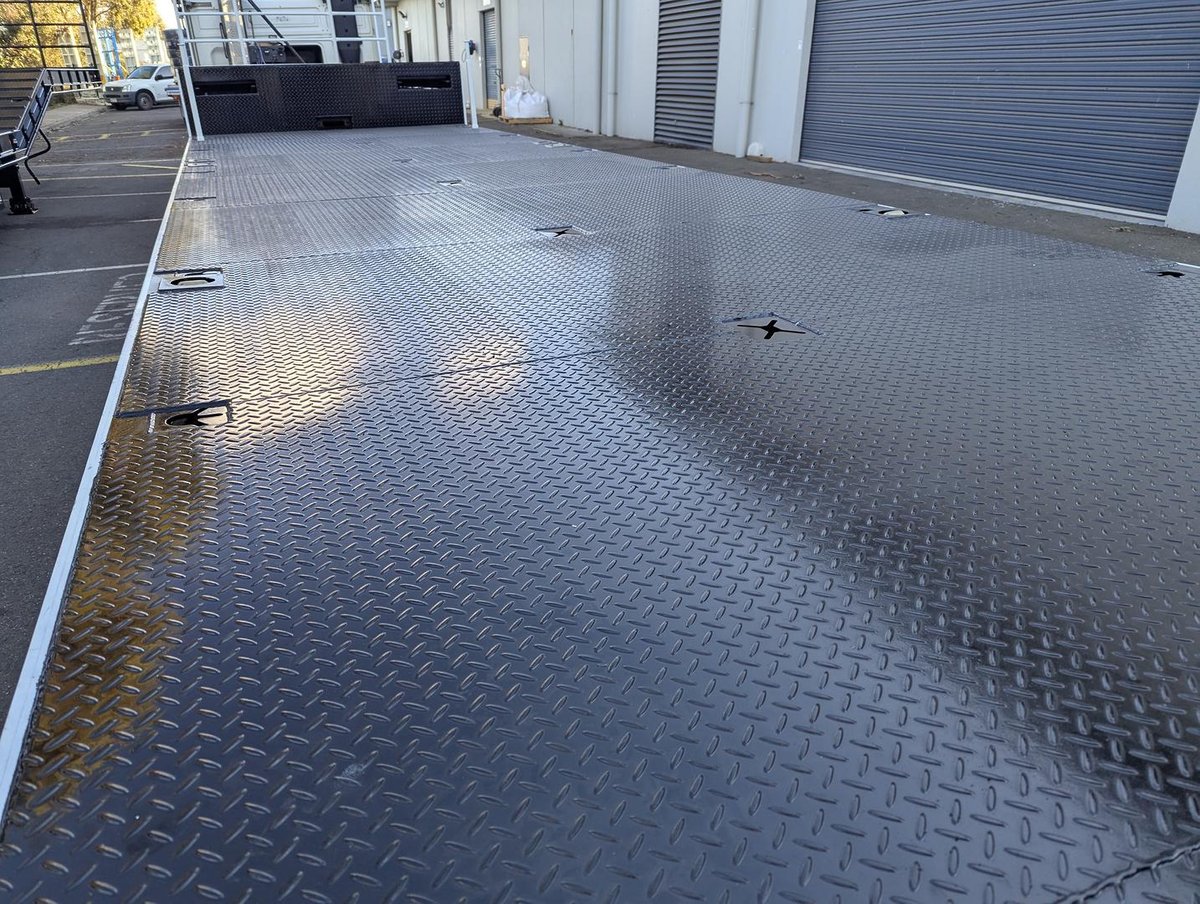

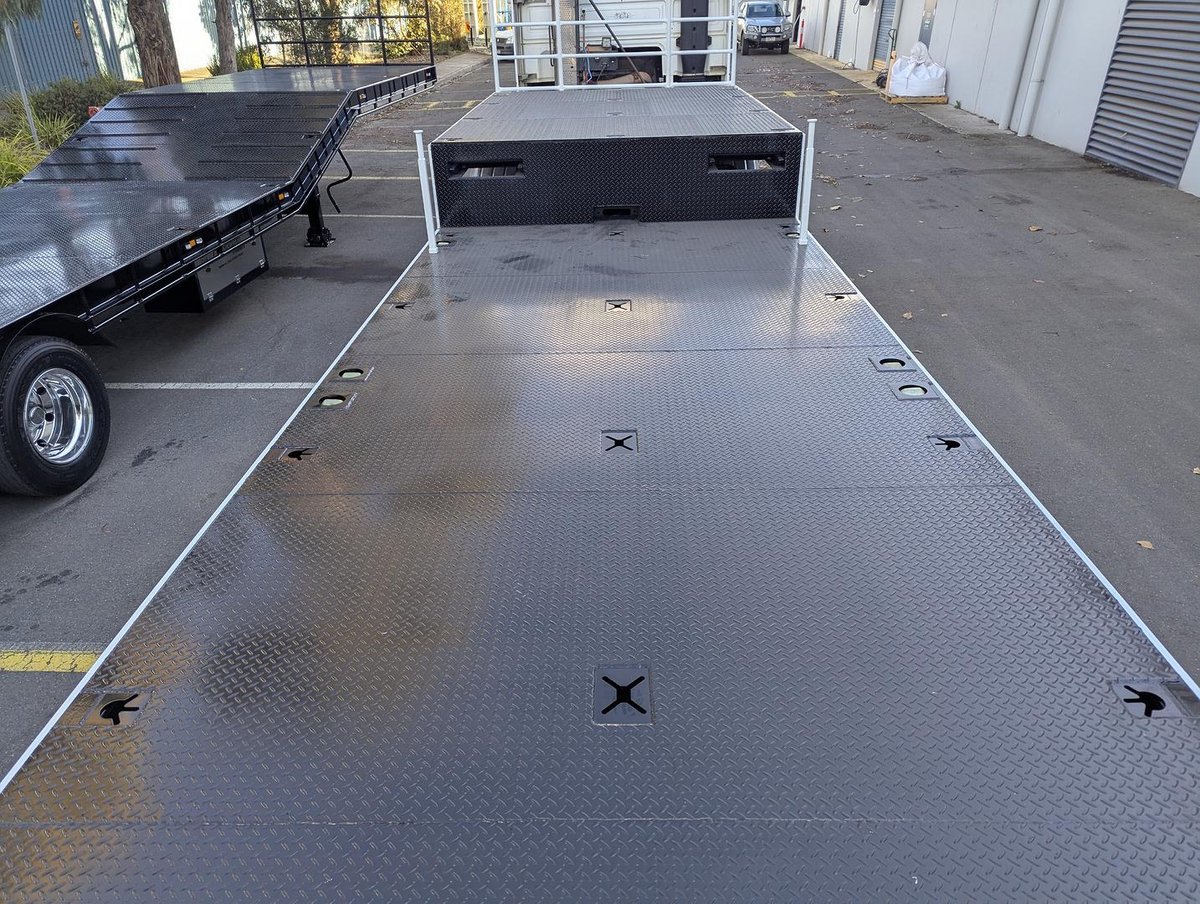

• Floor: 5mm checker plate, flush finished with in-deck tie-down points.
• Coaming Rails: 180mm PFC with integrated tie-down points.
• Cross Members: 100 x 50 x 3mm.
• Kingpin: Dual king pin position.
• Skid plate: 10mm 350 grade skid plate.

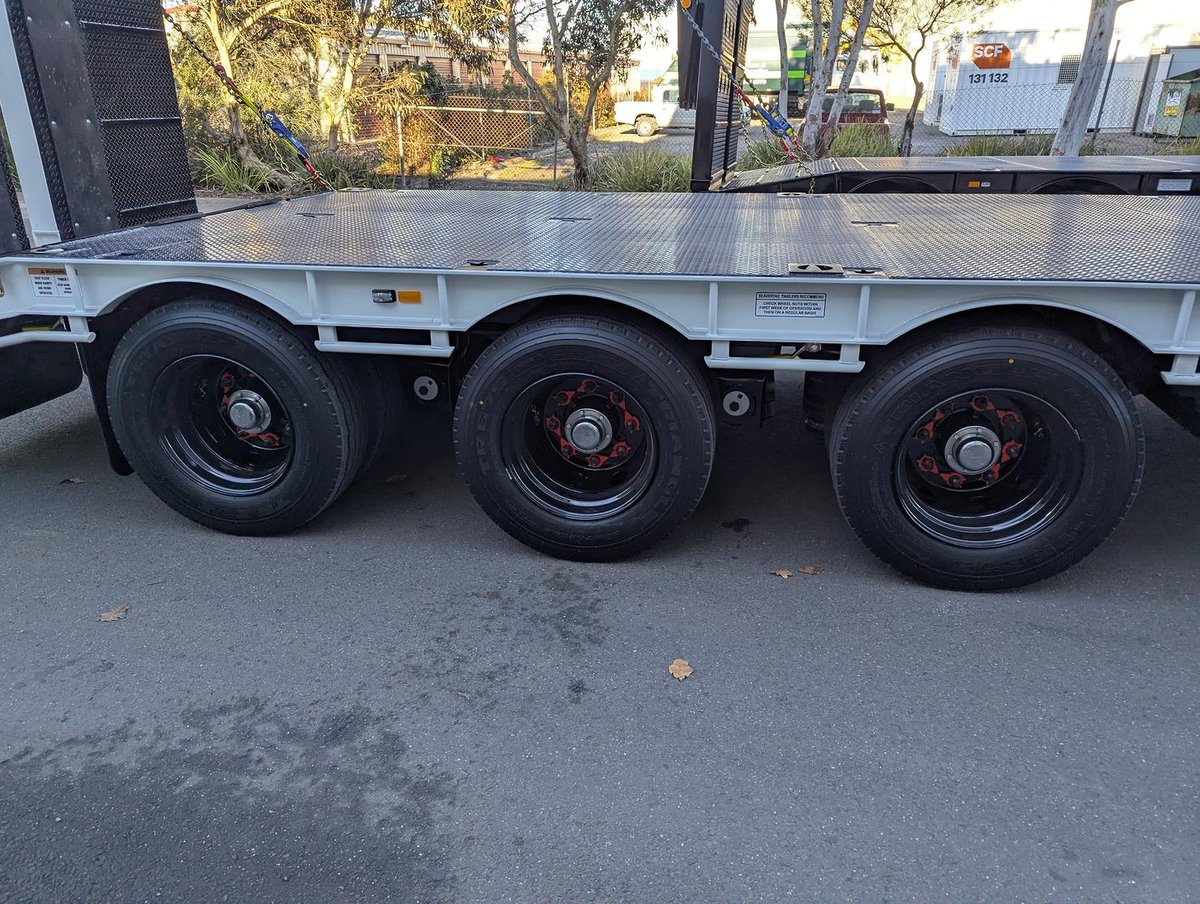

Axles & Suspension:
• 19.5" eight-stud axles rated to more than 22.5 tonnes in tri axle group.
• Airmax suspension.

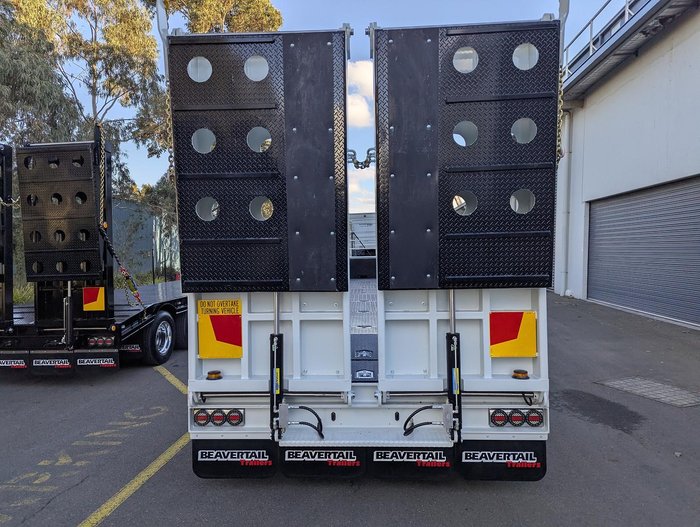

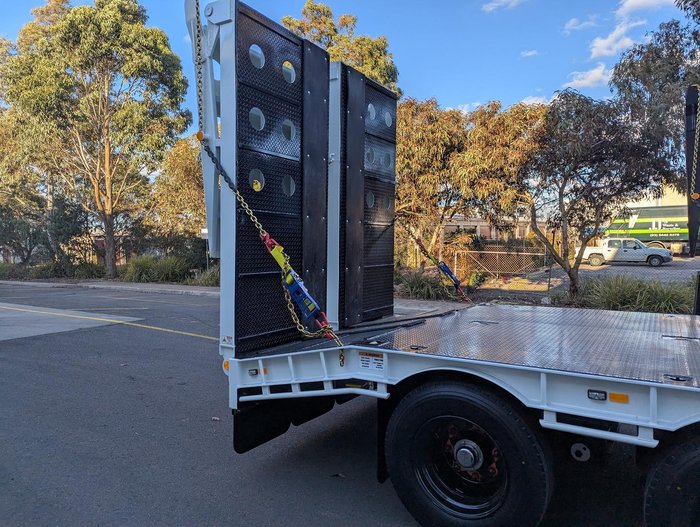

Ramps & Backboard:

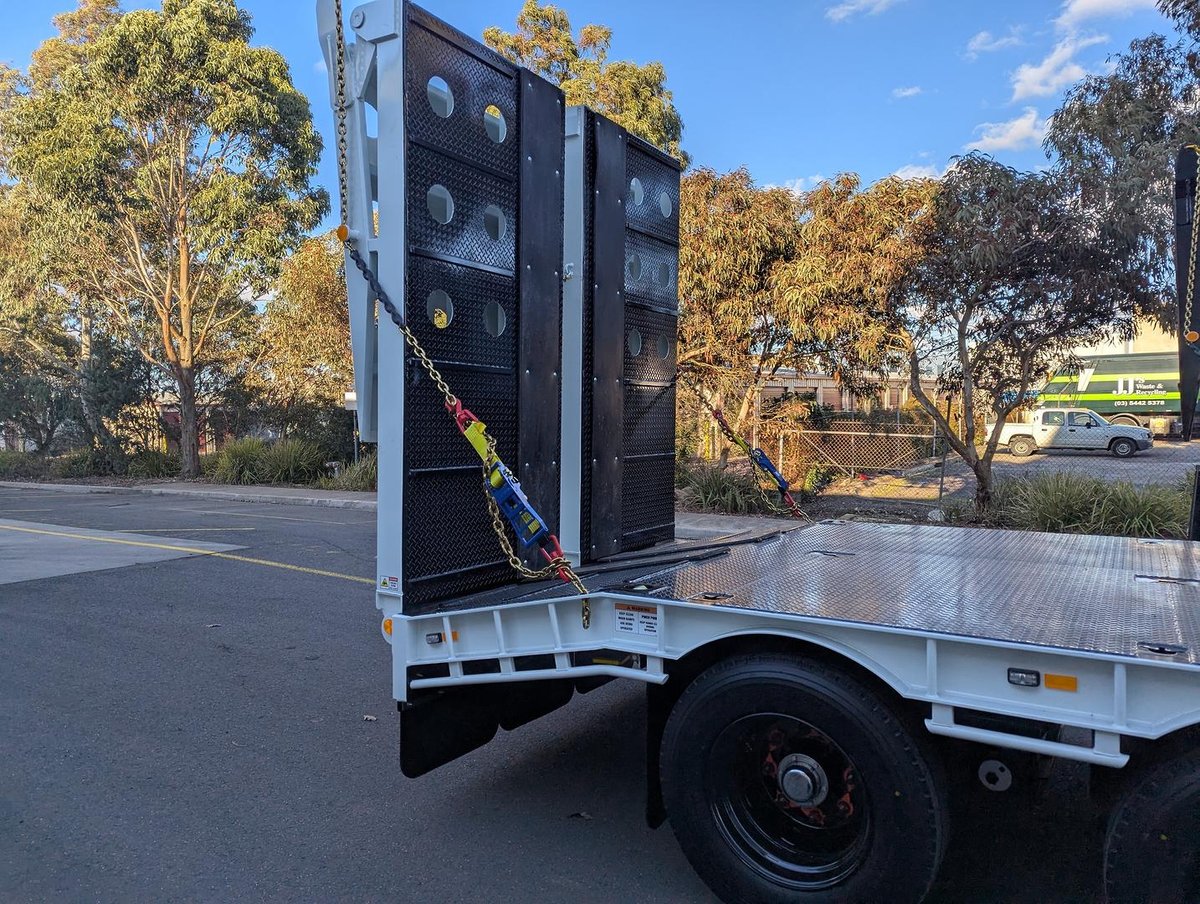

• 4000mm x 1000mm hydraulic double-acting B--fold ramps with battery pack and 5mm checker plate.
• Stainless steel ramp hinge bar, load binder dogs, and chains included.
Braking System: Full air brakes with EBS and auto slack adjusters.
Wheels & Tyres:
• Steel rims.
• 265/70 R19.5" tyres.
• Laser axle alignment for enhanced durability and performance.
Electrics & Lighting:
• LED multi-volt harness system with ADR-compliant signage and reflectors.
• Combination taillights.
• Electrical plug and air fittings suited to your truck.
Paint & Finish:
• Industrial-grade two-pack polyurethane paint
Safety & Convenience:
• 2 speed front landing leg.

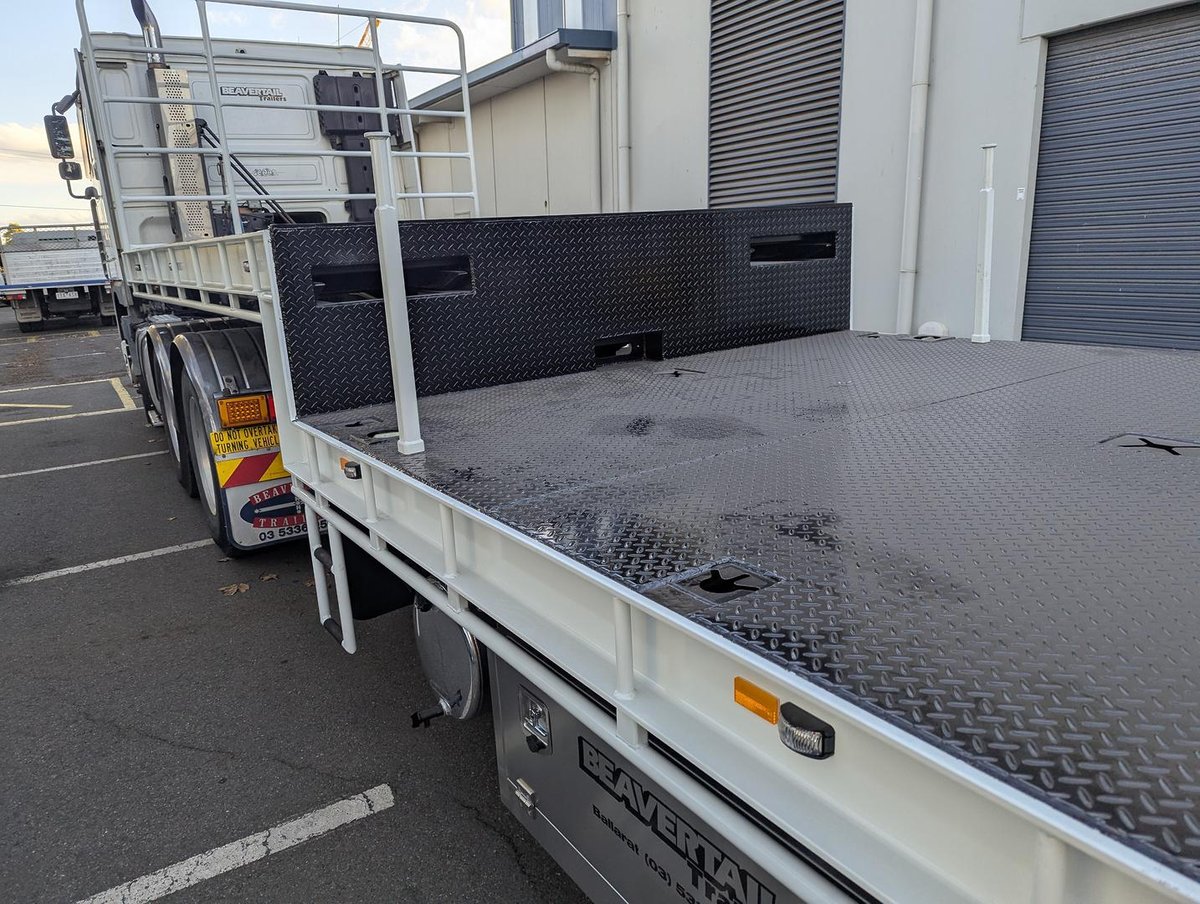

• 1500mm Front drop-in hurdle.
• Stainless steel toolbox.
• Rope rail.
• Spare tyre and carrier.
• 175-amp Anderson plug for charging battery systems.
• Rear stabilizer legs and mudguards with Beavertail mud flaps.
• Comprehensive owner’s manual, safety chains, and 2 years structural warranty.

100% Australian-Made. Built to Last. Backed by 38 Years of Experience.

Unmatched Performance, Tailored to You
Since 1987, has engineered thousands of heavy-duty trailers for Australia’s toughest industries. Every trailer is crafted in Ballarat, Victoria, using Australian steel and premium components. No compromises. No shortcuts. Just relentless durability.

*Total length, width, and ATM of the trailer may vary.
Excludes stamp duty, registration, and delivery (available at cost).
Photos are for reference only, and the price applies to base variants only.
